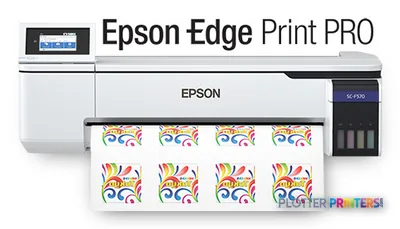

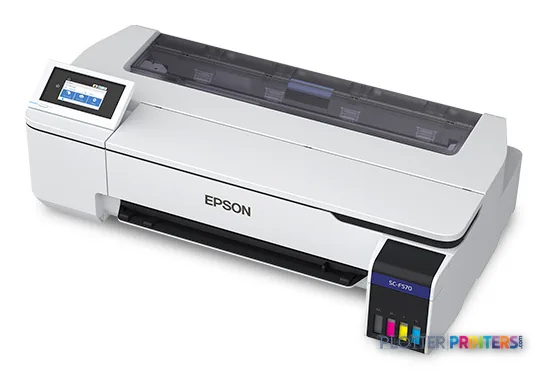

Epson SureColor F SCF570PE

The SCF570PE makes most sense where the print room is asked to support visual communication alongside technical documentation. A design studio preparing project identity materials, a contractor assembling color-forward site displays, or a facilities group creating durable-looking graphics may value a dedicated dye-sublimation workflow. Its 24.4-inch maximum roll width is appropriate for compact-format work rather than wide plan-set production.

Operationally, it offers roll and cut-sheet handling, an automatic take-up reel, and a maximum input capacity of 50 sheets. The 4.3-inch touch display, USB, Ethernet LAN, Wi-Fi, and Wi-Fi Direct provide several ways for a small team to submit work. Gigabit-capable Ethernet is useful where IT prefers a wired device on the office network; Wi-Fi Direct is more practical for controlled local use than as a substitute for managed network policy.

For firms comparing specialist Epson options, the Epson F571 is the closest catalogued in-family reference: it is also a current 24-inch dye-sublimation model specified at 2400 x 1200 DPI. That makes it the sensible comparison before assuming that a different model is a meaningful production step-up.

CMYK dye-sublimation can render bright, intentional color, particularly in graphics where hue relationships carry the message: a wayfinding panel, a team graphic, or a color-coded presentation element. But no measured ICC gamut data is available here, so there is no basis to claim a gamut advantage or predict a particular corporate color’s accuracy. In color work, the difference often shows up at the cyan edge of a saturated blue; that is exactly where proofing on the intended substrate matters.

The supplied facts do support sensible environmental planning. The printer is specified for operation from 10 to 35 °C and 20 to 80% relative humidity. It is rated at 50 dB while printing and 32 dB in standby, so a shared studio or print-room location is generally more considered than a quiet desk-side installation. For networked AEC environments, confirm how Windows 10 or Windows 11 workstations and supported Mac systems will submit jobs before deployment.

This is not the right machine to treat as the sole wide-format device for an engineering department issuing frequent plan sets. Its maximum roll width is 24.4 inches, and the supplied data does not establish high-volume CAD throughput, multi-roll switching, or plan-set collation. Firms whose core requirement is ordinary CAD, PDF, and construction-document output should evaluate a purpose-matched technical printer separately.

Likewise, do not infer direct equivalence from resolution alone. The Epson SC-F500 shares a 2400 x 1200 DPI specification in the catalog but is listed as inkjet, while the SCF570PE is dye-sublimation. Compare the actual media, finishing, color-management, and application requirements—not just the headline DPI. Our side-by-side comparison is a useful starting point for that conversation.
