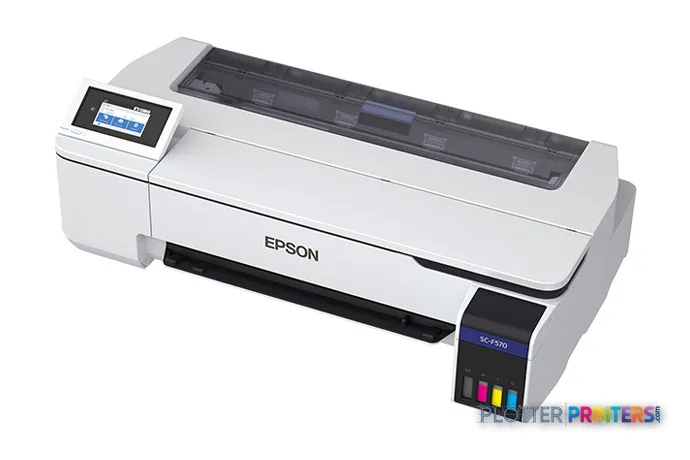

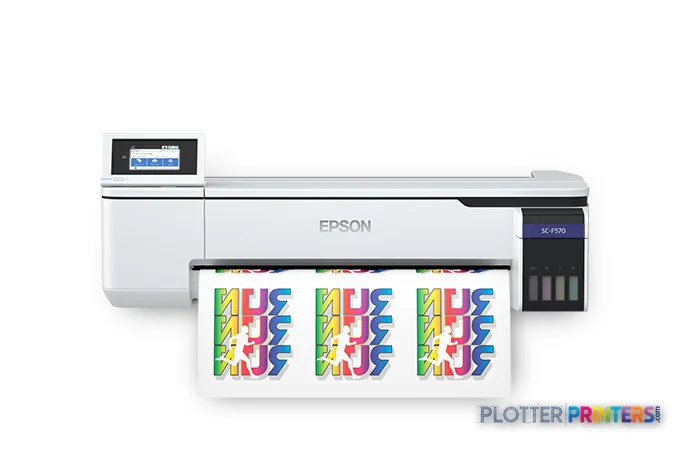

Epson SureColor F SCF570LA

This machine is most credible where the output is relatively narrow-format, color-led, and produced near the people reviewing it. Think design-studio graphics, project communication materials, color-coded exhibits, or selected presentation output rather than a steady stream of full plan sets. The 4.3″ built-in touch display, USB port, Ethernet LAN, Wi-Fi, and Wi-Fi Direct provide several ways to place it within a small office or temporary project workflow.

The stated 2400 x 1200 DPI maximum resolution suggests the device can render detailed graphical content, but resolution alone does not establish drawing quality. Fine linework, small annotation text, and the visual separation of adjacent colors depend on the source PDF, driver behavior, media, and the dye-sublimation workflow. There is no measured ICC-gamut information in the supplied data, so a buyer should not infer color coverage or proofing suitability from resolution alone. For critical client-facing color, test the actual files and media that the team uses.

The SCF570LA supports roll media and cut sheets, with a maximum roll diameter of 4.29″ (10.9 cm). That physical limit matters in a working office: it defines the roll format the operator can load, rather than implying the unattended capacity of a central reprographics device. For teams producing mixed-size permit sets, collated construction packages, or frequent reprints from multiple disciplines, verify the whole submission-to-output sequence before relying on it as a shared plan printer.

On the network side, Ethernet LAN supports 10,100,1000 Mbit/s, and Wi-Fi plus Wi-Fi Direct may be useful for flexible placement. Supported operating systems listed for the machine include Windows 10, Windows 7, Windows 8, Windows XP, Mac OS X 12.0 Monterey, and Mac OS X 13.0 Ventura. Organizations with managed endpoints should confirm current driver deployment, authentication expectations, and compatibility with their PDF and CAD submission process. The page-description language is ESC P; that is useful configuration information, not by itself a guarantee of identical output from every application.

The nearest listed comparison is the Epson F571, which is also identified as a dye-sublimation model with 2400 x 1200 DPI resolution. That makes it the most sensible starting point for a buyer assessing a similar technology and output intent. The side-by-side comparison is more useful than assuming that two similarly specified devices will behave the same way in a given media workflow.

For a different direction, the listed Epson F501 24-in is an inkjet model at 2400 x 1200 DPI. It may be worth examining when the priority is an inkjet-based alternative rather than dye-sublimation output. Neither comparison substitutes for validating ordinary project files: dense civil sheets, MEP coordination overlays, survey mapping, and markups can reveal different requirements from polished color graphics.
