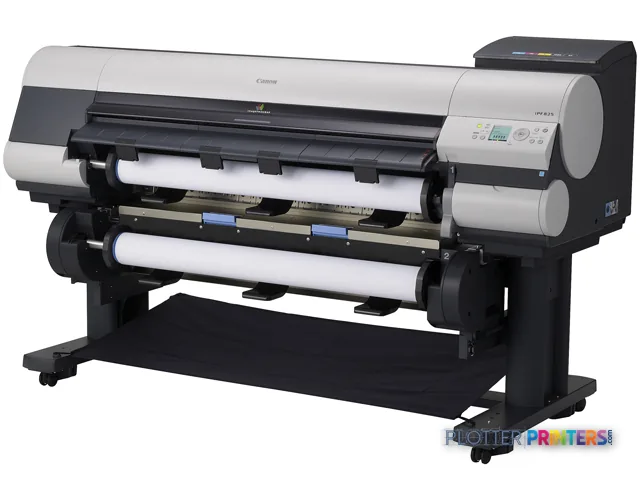

Canon imagePROGRAF iPF825

This is most credible in a centralized AEC print area or busy discipline group that produces full-size plans repeatedly, rather than in a small project room with occasional plotting needs. It accepts roll paper and cut sheets, supports media from 0.003″–0.031″ (0.07–0.8 mm), and uses a hard-disk drive with 160 GB of internal storage. Those details matter when several users submit large PDFs and CAD-derived files in succession: a plotter that saves time at the printhead buys little if jobs spend minutes waiting for a workstation or a driver.

For plan sets, the stated +/- 0.1% line accuracy is the relevant specification, alongside clear fine-line and small-text reproduction at the available resolution. The five listed printing colors—Black, Cyan, Magenta, Pigment matte black and Yellow—also make it a sensible fit for color-coded MEP coordination, phasing plans, GIS exhibits and construction markups on ordinary technical media. It is not presented here as a scanning or multifunction platform, so firms with a steady scan-to-PDF, copy or archive workload should treat that as a separate workflow requirement rather than an assumed feature.

The iPF825 provides Ethernet LAN through one RJ-45 port at 10/100Base-T/TX, plus a USB Type-A connection and one USB 2.0 port. Its supplied software includes Printer Driver Extra Kit for Windows and Mac, with Free Layout, Color imageRUNNER Enlargement Copy and Advanced Preview; Windows users also receive a Microsoft Word, Excel and PowerPoint print plug-in. That is useful for production staff assembling mixed document output, although the decision should begin with the files your teams actually submit: CAD PDFs, native application output and construction-platform downloads can impose very different support demands.

IT should pay particular attention to the stated operating-system list: Windows XP through Windows 7 and specified Macintosh OS X 10.3.9–10.6 versions. That makes a current network, driver-validation and access-control review essential before deployment. Ethernet connectivity is not, by itself, a security architecture. Confirm how the device will be segmented, who can submit jobs, how stored files are handled, and who owns driver support when an urgent bid set stalls. Money is minutes.

Within the listed Canon family, the Canon iPF820 44-in is the nearest step-down comparison because it retains the same 44-inch format and 2400 x 1200 DPI specification in the catalog. The Canon iPF830 44-in is the logical step-up model to put alongside the iPF825 when remaining at 44 inches is important. The available catalog data does not establish a complete feature-for-feature differentiation here, so ask for a demonstrated workflow using your files rather than inferring capability from model order.

Firms whose drawings rarely exceed 36 inches should also compare the footprint and operational need against the Canon iPF780 36-in. Conversely, a central reprographics operation with recurring oversized output may need to investigate the Canon iPF9400 60-in. The iPF825 weighs 416.7 lbs (189 kg), measures 74.5 x 38.4 x 45″, and reaches 52 dB while printing; it belongs in a planned production area, not under a designer’s desk.
