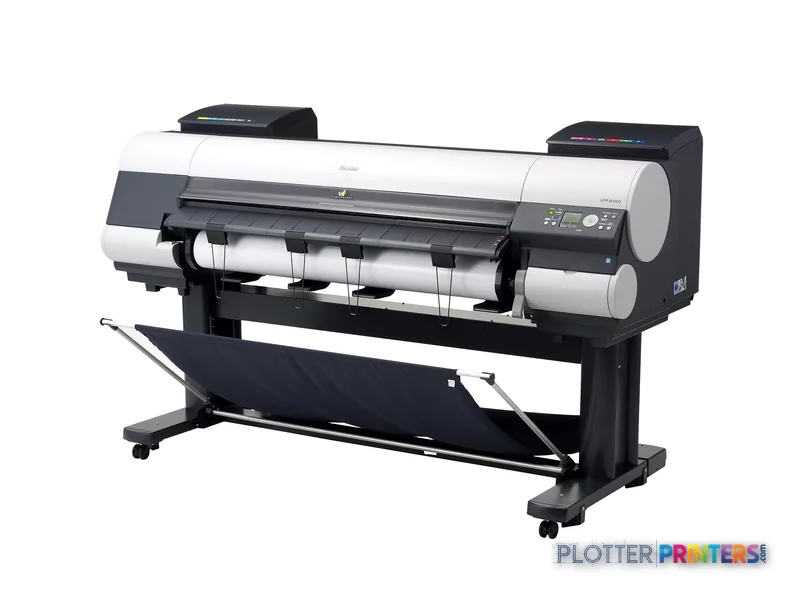

Canon imagePROGRAF iPF8100

The iPF8100 fits teams that need color wide-format output up to 44 inches wide and regularly move between technical drawings and graphical documents. Think architectural permit sheets, structural markups, utility maps, construction logistics plans, and color-coded MEP coordination PDFs. Its stated maximum print size is A0, or 33 x 47 inches.

The 2400 x 1200 DPI maximum resolution and 4 ink drop specification matter most when small annotations, hatch patterns, line weights, and colored overlays share the same sheet. That does not remove the usual AEC discipline: send a sensible PDF, check page size, and do not blame the printer for a consultant’s unreadable eight-point note.

Media handling is specified up to 44 inches wide, with a maximum roll length of 708.7 inches and maximum roll diameter of 5.91 inches. For offices that mainly print occasional sets and presentation sheets, that can be a practical fit. Teams producing nonstop mixed-size plan sets should inspect the full loading and changeover routine before committing.

Bottom line: This is a sensible 44-inch color output device when drawings and graphics share the same deadline.

The iPF8100 provides Ethernet LAN through one RJ-45 port and a USB Type-A connector, with one USB 2.0 port listed. It uses GARO as its page description language and includes Digital Photo Front-Access software. Its 384 MB buffer and 80 GB internal storage are relevant to job handling, but they are not a substitute for testing your actual CAD and PDF files.

The operating-system list is a point that deserves a hard stop in any modern procurement review: Windows 2000, XP, and Vista 32/64bit, plus Mac OS9 and OSX, are specified. IT teams should verify current driver, security, network-policy, and submission compatibility in their own environment before placing this machine into production. Old driver assumptions have ruined more afternoons than paper jams.

The listed sound pressure level while printing is 50 dB. Power requirements are AC 100 – 120V, 50 – 60Hz, with typical power consumption stated as 190 W and standby power consumption as 6 W.

Bottom line: Check the workflow first; width and resolution do not solve an unsupported submission path.

Within the listed Canon family, the iPF8100 occupies the 44-inch format. The Canon iPF8300 44-in is the obvious same-width model to review alongside it, since it is also listed at 44 inches and 2400 x 1200 DPI. Use the side-by-side comparison to focus on the features that affect your files, media, and operator routine rather than choosing by model number alone.

If the work genuinely requires wider sheets, the Canon iPF9100 60-in changes the format conversation with its 60-inch width. That is not automatically an upgrade. It is a different space, media, and workflow decision. Conversely, a 44-inch device remains easier to justify where most deliverables are standard plan widths and the print room is tight.

Resolved supplies for this model include Canon 2957B001, Canon 2958B001, Canon 2963B001 inks, and the Canon PF-03 printhead. Confirm supply availability and service support locally, particularly if this printer is joining an established fleet.

Bottom line: Stay at 44 inches when that covers the work; move wider only when the drawings actually demand it.
