Home / Wide-Format Printers / HP DesignJet
HP · Wide-Format Plotter

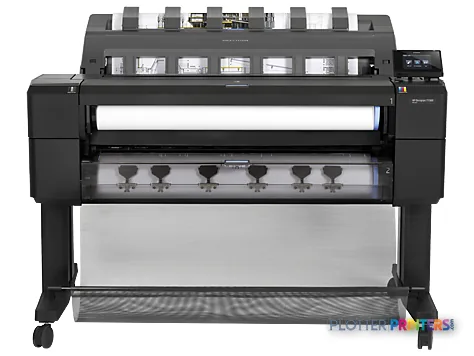

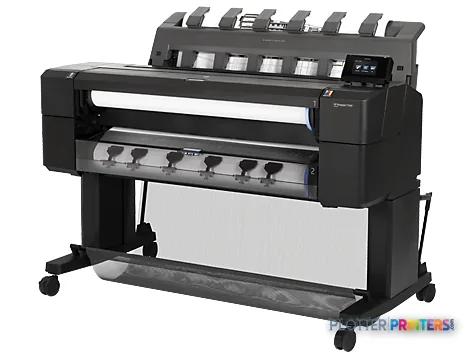

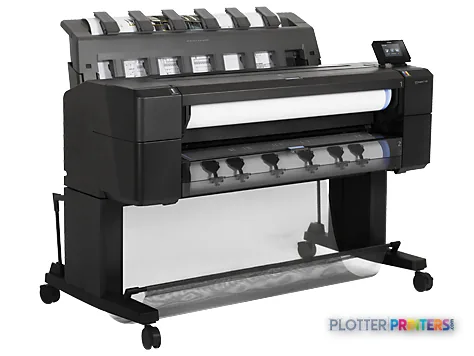

HP DesignJet T1500
36" color graphics & photo printer
- ModelCR357A
- Prints36" wide
- Score59/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Not sure if the CR357A is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Gray, Magenta, Matte black, Photo black, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 59/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T1500 36-in PS ePrinter, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, HP-RTL, PCL 3, PDF 1.7, PostScript 3, TIFF, Cyan, Gray, Magenta, Matte black, Photo black, Yellow, 120 pph, A1 (594 x 841 mm)
- 808 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers
86% spec coverage
- This printer
Verified specifications
The specs that decide it
| Print technology | Thermal inkjet |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, PDF 1.7, PostScript 3, TIFF |
| Internal memory | 64 MB |
| Maximum print size | A1 (594 x 841 mm) |
| Media thickness | 0.5 mm |
| Ethernet | Yes |
| Sound level (printing) | 47 dB |
| Power consumption | 120 W |
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width36"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Print technology | Thermal inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Print head nozzles | 9632 |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, PDF 1.7, PostScript 3, TIFF |
| Print speed (line, color, normal quality, A1) | 120 pph |
Performance
| Display | LCD |
|---|---|
| Certification | WEEE, EU RoHS, REACH, EuP, FEMP |
| Storage media | HDD |
| Internal memory | 64 MB |
| Built-in display | Yes |
| Internal storage capacity | 320 GB |
| Sound power level (standby) | 6.5 dB |
| Sound pressure level (printing) | 47 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Media thickness | 0.5 mm |
| Roll top margin | 0.197" (5 mm) |
| Print margin roll | 0.197" (5 mm) |
| Maximum print size | A1 (594 x 841 mm) |
| Maximum roll length | 3582.7" (91 m) |
| Media size (tray 1) | 210 x 279 / 914 x 1219 mm |
| Maximum print length | 3582.7" (91 m) |
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper |
| Print margin cut-sheet | 5 x 22 x 5 x 5 |
| Recommended media weight | 60 – 328 g/m² |
| ISO A-series sizes (A0…A9) | A1 |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
Weight & dimensions
| Depth | 27.3" (693 mm) |
|---|---|
| Width | 55.1" (1399 mm) |
| Height | 37.4" (950 mm) |
| Weight | 194 lbs (88 kg) |
Power
| Power consumption (off) | 0.1 W |
|---|---|
| Power consumption (typical) | 120 W |
| Power consumption (PowerSave) | 4 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Line accuracy | +/- 0.1% |
|---|---|
| Line width minimum | 0.02 mm |
Packaging data
| Package depth | 30.5" (775 mm) |
|---|---|
| Package width | 29.9" (759 mm) |
| Package height | 59.1" (1502 mm) |
| Package weight | 256.8 lbs (116.5 kg) |
| Drivers included | Yes |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Everything that fits the HP DesignJet T1500
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
21 ink cartridges · 1 printhead · 31 paper & media items · 3 accessories
HP DesignJet T1500 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T1500 36-in PS ePrinter — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 21
HP Premium Gloss 610 mm x 15.2 m (24 in x 50 ft)
HP Premium Gloss 914 mm x 22.9 m (36 in x 75 ft)
HP Premium Matte White
HP 727 Cyan Ink Cartridge, 40 ml (B3P13A)
HP 727 Photo Black Ink Cartridge, 40 ml (B3P17A)
HP 727 Yellow Ink Cartridge, 40 ml (B3P15A)
HP 727 Gray Ink Cartridge, 40 ml (B3P18A)
HP 727 Magenta Ink Cartridge, 40 ml (B3P14A)
HP 727 300-ml Matte Black Ink Cartridge
HP 727 130-ml Cyan Ink Cartridge
HP 727 130-ml Gray Ink Cartridge
HP 727 130-ml Yellow Ink Cartridge
HP 727 130-ml Photo Black Ink Cartridge
HP 727 130-ml Magenta Ink Cartridge
HP 727 300-ml Photo Black Ink Cartridge
HP 727 300-ml Yellow Ink Cartridge
HP 727 300-ml Magenta Ink Cartridge
HP 727 300-ml Gray Ink Cartridge
HP 727 300-ml Cyan Ink Cartridge
HP 727 130-ml Matte Black Ink Cartridge
HP 727 Matte Black Ink Cartridge, 69 ml (C1Q11A)Printheads 1
Paper & Media 31
HP Q1420A photo paper Brown, White
HP Matte Film 610 mm x 38.1 m (24 in x 125 ft)
Representative imageHP Bright White Inkjet Paper, 36 in x 300 ft (C6810A)
HP C6035A large format media 45.7 m
HP C6036A printing paper Matte White
HP Clear Film 174 gsm-610 mm x 22.9 m (24 in x 75 ft)
HP Q1421A photo paper Brown, White
HP Q6579A photo paper Brown, White
HP Q6580A photo paper Matte
HP Q1441A large format media 45.7 m
HP Q1442A large format media 45.7 m
HP Q1444A printing paper Matte
HP Q1445A printing paper Matte
HP Universal Bond Paper 841 mm x 91.4 m large format media 3598.4" (91.4 m)
HP Q8004A large format media 91.4 m
HP Q7991A photo paper
HP Q1446A plotter paper 45 m 42 cm
HP CH022A printing film
HP CH024A printing film
HP CH023A printing film Polypropylene (PP)
HP Premium Satin 610 mm x 15.2 m (24 in x 50 ft) White
HP Premium Satin 914 mm x 22.9 m (36 in x 75 ft) White
HP CG459B photo paper White Matte
HP Q6626B large format media 30.5 m Matte
HP Q6627B large format media 30.5 m Matte
HP C0F08A printing film
HP 2-pack Everyday Adhesive Matte Polypropylene-610 mm x 22.9 m (24 in x 75 ft)
HP C0F19A printing film
HP C0F28A printing film
HP C2T51A printing film
HP C2T53A printing film
Questions
Straight answers
What AEC work is the HP T1500 36-in ePrinter suited to?
It fits shared office production of CAD drawings, PDF issue sets, color coordination sheets, and technical graphics where 36-inch roll or cut-sheet output is useful. Its supported page-description languages include HP-GL/2, HP-RTL, PCL 3, and TIFF.
How fast is the HP T1500 36-in ePrinter?
HP rates color A1 line output at 120 pph in normal quality. That rating should not be treated as completed-set throughput, which also includes processing, media handling, and collecting output.
Can it handle both plans and presentation-oriented media?
Yes. The record lists cut sheets and roll paper, recommended media weights from 60 to 328 g/m², and bond, coated, glossy, and photo paper media types. Test the actual drawing and media combination before committing to a standard.
Does this model support scanning and copying?
The supplied product record does not state that scanning or copying is built in. Buyers who need those functions should confirm the required workflow and any compatible accessory arrangement with their dealer.
What supplies does it use?
The compatible ink family is HP 727. The supplied compatibility record also lists multiple HP media and maintenance items, including HP C0F08A printing film and HP Matte Film 610 mm x 38.1 m (24 in x 125 ft).
When should I consider the HP DesignJet T1600dr 36-in instead?
Consider it when dual-roll operation is a defined requirement, because the catalog explicitly identifies that model as dual-roll. This matters where teams frequently switch between media types or sizes.
