HP · Printhead

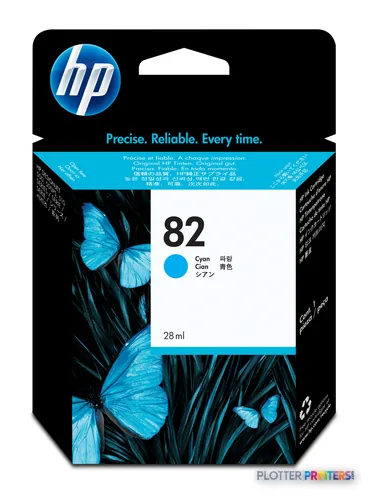

82 28-ml Cyan DesignJet Ink Cartridge print head Thermal inkjet
- ModelCH566A
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Works with these printers
Compatibility resolved from manufacturer supply listings — 3 printers.
HP DesignJet 500ps Plus
HP DesignJet 510
HP 800psOverview
Built for the work
HP 82 28-ml Cyan DesignJet Ink Cartridge, HP DesignJet 500, 500 Plus, 500PS, 510, Thermal inkjet, Cyan, CH566A, Enterprise, Singapore
Specifications
Full technical detail
Print technologyThermal inkjet
Performance
| OEM code | CH566A |
|---|---|
| HP segment | Enterprise |
| Compatibility | HP DesignJet 500, 500 Plus, 500PS, 510 |
| Printing colors | Cyan |
| Print technology | Thermal inkjet |
| Country of origin | Singapore |
Technical details
| Box contents | Ink cartridge |
|---|---|
| Number of cartons per pallet layer | 7 pc(s) |
Weight & dimensions
| Depth | 1.02" (26 mm) |
|---|---|
| Width | 4.61" (117 mm) |
| Height | 6.18" (157 mm) |
| Weight | 2.12 oz (60 g) |
Operational conditions
| Storage temperature (T-T) | -40 – 60 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage relative humidity (H-H) | 10 – 80% |
| Operating relative humidity (H-H) | 10 – 80% |
Other features
| UNSPSC-code | 44103105 |
|---|---|
| Quantity per box | 1 pc(s) |
Logistics data
| Pallet weight | 875.9 lbs (397.3 kg) |
|---|---|
| Pallet size (EU) | 47.2 x 31.5 x 72.5" (1200 x 800 x 1842 mm) |
| EUR-pallet weight | 933.9 lbs (423.6 kg) |
| Quantity per pack | 1 pc(s) |
| Quantity per pallet | 4200 pc(s) |
| Quantity per EUR-pallet | 4200 pc(s) |
| Number of layers per pallet | 12 pc(s) |
| Number of cartons per pallet | 84 pc(s) |
| Pallet dimensions (W x D x H) | 40 x 48 x 76" (1016 x 1219 x 1930 mm) |
Packaging data
| Package type | Box |
|---|---|
| Package depth | 1.02" (26 mm) |
| Package width | 4.61" (117 mm) |
| Package height | 6.18" (157 mm) |
| Package weight | 3.17 oz (90 g) |
