Epson · Wide-Format Plotter

Epson SureColor SC-T3405N – wireless printer (No stand)

technical / CAD plotter

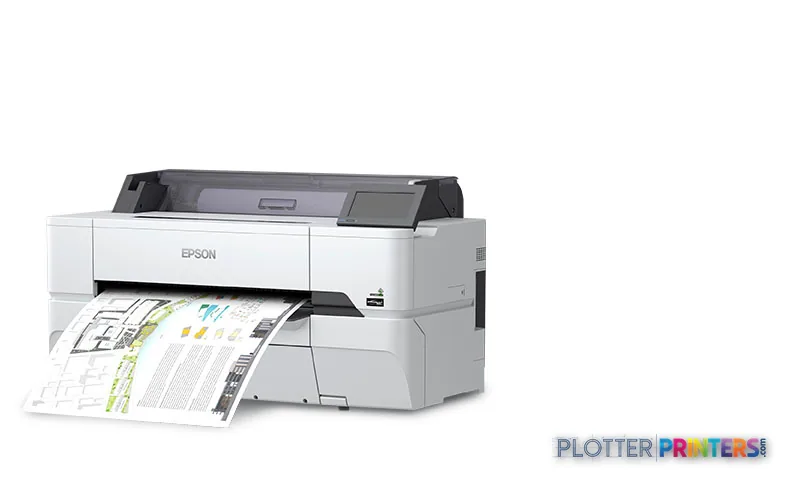

Epson SureColor SC-T3405N wireless large-format printer in white and grey, front product view with sample output

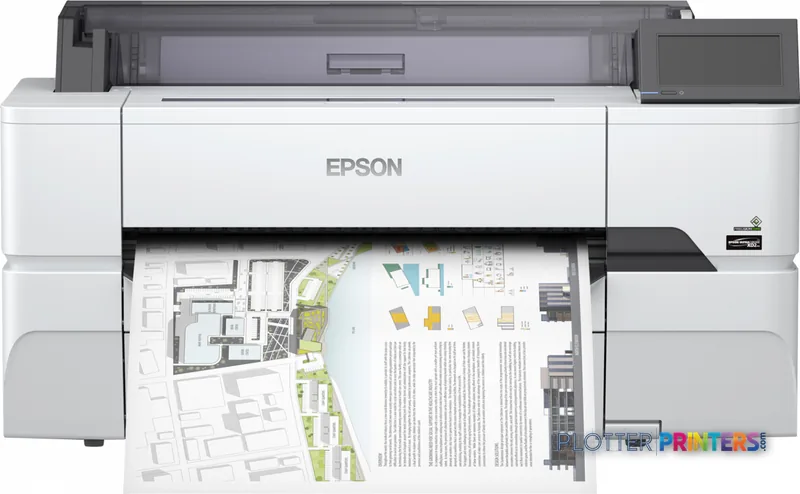

Epson SureColor SC-T3405N wireless large-format printer with architectural drawing output
Authorized Epson dealerGenuine hardware & ink
2-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers

Not sure if the C11CJ55302A1 is right for you?

Compare key specs and an AI analyst read-out against similar models.

Compare printers →
  • Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
  • Ink platform Black, Cyan, Magenta, Yellow.
  • Scan & copy Integrated scanner for digitizing and sharing sets.
  • Connectivity Wi-Fi + Ethernet for shared team printing.
  • Analyst score Scores 62/100 in our class-relative rating.

Overview

Built for the work

Epson SureColor SC-T3405N, 2400 x 1200 DPI, ESC/P-R, HP-GL/2, Black, Cyan, Magenta, Yellow, 2400 x 1200 DPI, 2400 x 1200 DPI, PrecisionCore™ Print Head

  • 4Ink channels
  • 2,400 dpiMax resolution
  • 24 moIncluded warranty
62 Spec Analysis
overall

Where it performs best

Connections 100
Size / Fit 93
Print Quality 83

How we grade →

Spec analysis

How the specs grade

Overall performance

62/ 100Solid

within technical / CAD plotters

72% spec coverage

Mediaprint_qualityColorConnectWorkflowSizeWarranty
  • This printer

How it scores

Media Handling67
Print Quality83
Print CostNot enough spec data
Color27
SpeedNot enough spec data
Connections100
Workflow30
Size / Fit93
Warranty67

Graded on a curve against the best published spec among the wide-format printers we track — 100 = the catalog’s gold standard for that metric (the finest droplet, the longest warranty, the fastest rated speed actually on the market). Every input is a manufacturer-published spec; rated speeds are shown as listed, not timed throughput. Ticks mark the class best. How we grade →

Verified specifications

The specs that decide it

Maximum resolution2400 x 1200 DPI
Printing colorsBlack, Cyan, Magenta, Yellow
Page description languagesESC/P-R, HP-GL/2
Internal memory1000 MB
Maximum print sizeA1 (594 x 841 mm)
ScanningColor scanning
Wi-FiYes
EthernetYes
Sound level (printing)50 dB
Power consumption38 W

Specifications

Full technical detail

Max resolution2400 x 1200 DPI
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
ColorYes
Print headPrecisionCore™ Print Head
Printing colorsBlack, Cyan, Magenta, Yellow
Resolution color2400 x 1200 DPI
Maximum resolution2400 x 1200 DPI
Print resolution black2400 x 1200 DPI
Page description languagesESC/P-R, HP-GL/2
Performance
Product colorGray, White
Internal memory1000 MB
Built-in displayYes
Display diagonal4.2"
Sound pressure level (standby)32 dB
Sound pressure level (printing)50 dB
Paper handling
Cut sheetsYes
Print margin roll0.118" (3 mm)
Maximum print sizeA1 (594 x 841 mm)
Paper tray media typesRoll
Print margin cut-sheet3 mm
ISO A-series sizes (A0…A9)A1, A2, A3, A3+, A4
ISO B-series sizes (B0…B9)B1, B2, B3, B4, B5
Ports & interfaces
Wi-FiYes
USB portYes
Ethernet LANYes
USB connectorUSB Type-A
Mobile printing technologiesApple AirPrint
Weight & dimensions
Depth29.5" (750 mm)
Width42.5" (1080 mm)
Height41.7" (1060 mm)
Weight108 lbs (49 kg)
Power
AC input voltage100 – 240 V
AC input frequency50 – 60 Hz
Power consumption (off)0.25 W
Power consumption (standby)13 W
Power consumption (typical)38 W
Copying
CopyingColor copying
Scanning
ScanningColor scanning
System requirements
Mac operating systems supportedMac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Windows operating systems supportedWindows 10, Windows 8, Windows Vista, Windows XP

Everything that fits the Epson SureColor SC-T3405N

The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.

25 ink cartridges · 38 paper & media items · 4 accessories · 7 coverage plans

Epson SureColor SC-T3405N ink and paper →

Supplies

Compatible ink, printheads & media

Genuine consumables that fit the Epson SureColor SC-T3405N – wireless printer (No stand) — only the cartridges, printheads and media compatible with this model.

Ink Cartridges 25

Epson Photo Quality Ink Jet Paper, DIN A3, 102g/m², 100 SheetsEpson Photo Quality Ink Jet Paper, DIN A3, 102g/m², 100 SheetsAvailable — request a quoteEpson Photo Quality Ink Jet Paper, DIN A3+, 102g/m², 100 SheetsEpson Photo Quality Ink Jet Paper, DIN A3+, 102g/m², 100 Sheets$37.00BackorderEpson Photo Quality Ink Jet Paper, DIN A2, 102g/m², 30 SheetsEpson Photo Quality Ink Jet Paper, DIN A2, 102g/m², 30 SheetsAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41F540 Black 350mlEpson Singlepack UltraChrome XD2 T41F540 Black 350mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41R240 Cyan 110mlEpson Singlepack UltraChrome XD2 T41R240 Cyan 110mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41R340 Magenta 110mlEpson Singlepack UltraChrome XD2 T41R340 Magenta 110mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41R440 Yellow 110mlEpson Singlepack UltraChrome XD2 T41R440 Yellow 110mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41R540 Black 110mlEpson Singlepack UltraChrome XD2 T41R540 Black 110mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41F340 Magenta 350mlEpson Singlepack UltraChrome XD2 T41F340 Magenta 350mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41F440 Yellow 350mlEpson Singlepack UltraChrome XD2 T41F440 Yellow 350mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41F240 Cyan 350mlEpson Singlepack UltraChrome XD2 T41F240 Cyan 350mlAvailable — request a quoteEpson SC-T3100x Cyan 140ml T49HEpson SC-T3100x Cyan 140ml T49H$24.95In stockEpson SC-T3100x Black 140ml T49HEpson SC-T3100x Black 140ml T49H$24.95In stockEpson SC-T3100x Magenta 140ml T49HEpson SC-T3100x Magenta 140ml T49H$24.95In stockEpson SC-T3100x Yellow 140ml T49HEpson SC-T3100x Yellow 140ml T49H$24.95In stockEpson Singlepack UltraChrome XD2 Cyan 700mlEpson Singlepack UltraChrome XD2 Cyan 700mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 Magenta 700mlEpson Singlepack UltraChrome XD2 Magenta 700mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 Yellow 700mlEpson Singlepack UltraChrome XD2 Yellow 700mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 Black 700mlEpson Singlepack UltraChrome XD2 Black 700mlAvailable — request a quoteEpson SC-T3100x Cyan 140ml T49HEpson SC-T3100x Cyan 140ml T49HAvailable — request a quoteEpson SC-T3100x Black 140ml T49HEpson SC-T3100x Black 140ml T49HAvailable — request a quoteEpson Singlepack UltraChrome XD2 Magenta 700mlEpson Singlepack UltraChrome XD2 Magenta 700mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41F340 Magenta 350mlEpson Singlepack UltraChrome XD2 T41F340 Magenta 350mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 T41R34N Magenta 110mlEpson Singlepack UltraChrome XD2 T41R34N Magenta 110mlAvailable — request a quoteEpson Singlepack UltraChrome XD2 Photo Black 700mlEpson Singlepack UltraChrome XD2 Photo Black 700mlAvailable — request a quote

Paper & Media 38

Representative product photograph of a roll of wide-format media beside a PlotterPrinters shipping carton. Generic image, not a photograph of this product.Representative image20LB Inkjet Bond Paper (Tinted) (732)$103.95In stockEpson Premium Glossy Photo Paper, DIN A3, 255g/m², 20 SheetsEpson Premium Glossy Photo Paper, DIN A3, 255g/m², 20 SheetsAvailable — request a quoteEpson Premium Glossy Photo Paper, DIN A3+, 255g/m², 20 SheetsEpson Premium Glossy Photo Paper, DIN A3+, 255g/m², 20 SheetsAvailable — request a quoteEpson Premium Semigloss Photo Paper, DIN A3+, 250g/m², 20 SheetsEpson Premium Semigloss Photo Paper, DIN A3+, 250g/m², 20 SheetsAvailable — request a quoteEpson Premium Semigloss Photo Paper, DIN A3, 250g/m², 20 SheetsEpson Premium Semigloss Photo Paper, DIN A3, 250g/m², 20 SheetsAvailable — request a quoteEpson Archival Matte Paper, DIN A3+, 189g/m², 50 SheetsEpson Archival Matte Paper, DIN A3+, 189g/m², 50 SheetsAvailable — request a quoteEpson A4 Archival Matte Photo Paper 189gsm, 50 sheetsEpson A4 Archival Matte Photo Paper 189gsm, 50 sheetsAvailable — request a quoteEpson Archival Matte Paper, DIN A3, 189g/m², 50 SheetsEpson Archival Matte Paper, DIN A3, 189g/m², 50 SheetsAvailable — request a quoteEpson Doubleweight Matte Paper Roll, 24" x 25 m, 180g/m²Epson Doubleweight Matte Paper Roll, 24" x 25 m, 180g/m²$58.00In stockEpson Premium Glossy Photo Paper Roll, 24" x 30,5 m, 170g/m²Epson Premium Glossy Photo Paper Roll, 24" x 30,5 m, 170g/m²$110.95BackorderEpson Premium Semigloss Photo Paper Roll, 24" x 30,5 m, 170g/m²Epson Premium Semigloss Photo Paper Roll, 24" x 30,5 m, 170g/m²$129.35In stockEpson Enhanced Synthetic Paper Roll, 24Epson Enhanced Synthetic Paper Roll, 24Available — request a quoteEpson Enhanced Adhesive Synthetic Paper Roll, 24" x 30,5 m, 135g/m²Epson Enhanced Adhesive Synthetic Paper Roll, 24" x 30,5 m, 135g/m²$238.00In stockEpson Singleweight Matte Paper Roll, 17" x 40 m, 120g/m²Epson Singleweight Matte Paper Roll, 17" x 40 m, 120g/m²$50.07In stockEpson Premium Luster Photo Paper, DIN A4, 250g/m², 250 SheetsEpson Premium Luster Photo Paper, DIN A4, 250g/m², 250 SheetsAvailable — request a quoteEpson Glossy Photo Paper, DIN A4, 225g/m², 20 SheetsEpson Glossy Photo Paper, DIN A4, 225g/m², 20 SheetsAvailable — request a quoteEpson Enhanced Matte Paper, DIN A4, 192g/m², 250 SheetsEpson Enhanced Matte Paper, DIN A4, 192g/m², 250 SheetsAvailable — request a quoteEpson Enhanced Matte Paper, DIN A3+, 192g/m², 100 SheetsEpson Enhanced Matte Paper, DIN A3+, 192g/m², 100 Sheets$87.00BackorderEpson Premium Luster Photo Paper, DIN A3+, 250g/m², 100 SheetsEpson Premium Luster Photo Paper, DIN A3+, 250g/m², 100 SheetsAvailable — request a quoteEpson Premium Glossy Photo Paper, DIN A2, 255g/m², 25 SheetsEpson Premium Glossy Photo Paper, DIN A2, 255g/m², 25 SheetsAvailable — request a quoteEpson Premium Semigloss Photo Paper, DIN A2, 250g/m², 25 SheetsEpson Premium Semigloss Photo Paper, DIN A2, 250g/m², 25 SheetsAvailable — request a quoteEpson Enhanced Matte Paper, DIN A2, 192g/m², 50 SheetsEpson Enhanced Matte Paper, DIN A2, 192g/m², 50 SheetsAvailable — request a quoteEpson Premium Luster Photo Paper, DIN A2, 250g/m², 25 SheetsEpson Premium Luster Photo Paper, DIN A2, 250g/m², 25 SheetsAvailable — request a quoteEpson Glossy Photo Paper BOGOF, DIN A4, 225g/m², 40 SheetsEpson Glossy Photo Paper BOGOF, DIN A4, 225g/m², 40 SheetsAvailable — request a quoteEpson Glossy Photo Paper, DIN A4, 225g/m², 100 SheetsEpson Glossy Photo Paper, DIN A4, 225g/m², 100 SheetsAvailable — request a quoteEpson Glossy Photo Paper, DIN A4, 225g/m², 50 SheetsEpson Glossy Photo Paper, DIN A4, 225g/m², 50 SheetsAvailable — request a quoteEpson Singleweight Matte Paper Roll, 24" x 40 m, 120g/m²Epson Singleweight Matte Paper Roll, 24" x 40 m, 120g/m²$87.70In stockEpson Premium Glossy Photo Paper Roll, 16" x 30,5 m, 170g/m²Epson Premium Glossy Photo Paper Roll, 16" x 30,5 m, 170g/m²$89.00In stockEpson Premium Semigloss Photo Paper, 16,5" x 30,5 m, 170g/m²Epson Premium Semigloss Photo Paper, 16,5" x 30,5 m, 170g/m²$89.00In stockEpson Matte Backlit Film, 24" x 30,5 m, 280g/m²Epson Matte Backlit Film, 24" x 30,5 m, 280g/m²Available — request a quoteEpson Bond Paper White 80, 610mm x 50mEpson Bond Paper White 80, 610mm x 50mAvailable — request a quoteEpson Bond Paper Bright 90, 594mm x 50mEpson Bond Paper Bright 90, 594mm x 50mAvailable — request a quoteEpson Bond Paper Bright 90, 610mm x 50m White MatteEpson Bond Paper Bright 90, 610mm x 50m White MatteAvailable — request a quoteEpson Bond Paper Satin 90, 610mm x 50mEpson Bond Paper Satin 90, 610mm x 50mAvailable — request a quoteEpson Coated Paper 95, 610mm x 45mEpson Coated Paper 95, 610mm x 45mAvailable — request a quoteEpson Presentation Paper HiRes 120, 610mm x 30mEpson Presentation Paper HiRes 120, 610mm x 30mAvailable — request a quoteEpson Presentation Paper HiRes 180, 610mm x 30mEpson Presentation Paper HiRes 180, 610mm x 30mAvailable — request a quoteEpson Bond Paper White 80, 594mm x 50mEpson Bond Paper White 80, 594mm x 50mAvailable — request a quote

Accessories 4

Epson Auto Cutter Spare Blade S902007Epson Auto Cutter Spare Blade S902007$149.25BackorderEpson SureColor Maintenance Box T699700Epson SureColor Maintenance Box T699700$53.64In stockEpson Roll Feed Spindle (24") Tx405Epson Roll Feed Spindle (24") Tx405Available — request a quoteEpson SureColor Borderless Replacement Pad Kit Tx400Epson SureColor Borderless Replacement Pad Kit Tx400$49.00In stock

Coverage & Support Plans 7

Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST3400S1)Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST3400S1)$395.95In stockEpson 2-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST3400S2)Epson 2-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST3400S2)$712.95In stockEpson 03 years CoverPlus+ Onsite service including Print Heads for SureColour SC-T3400/3405Epson 03 years CoverPlus+ Onsite service including Print Heads for SureColour SC-T3400/3405Available — request a quoteEpson 04 years CoverPlus+ Onsite service including Print Heads for SureColour SC-T3400/3405Epson 04 years CoverPlus+ Onsite service including Print Heads for SureColour SC-T3400/3405Available — request a quoteEpson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST3400S4)Epson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST3400S4)$1,266.95In stockEpson 05 years CoverPlus+ Onsite service including Print Heads for SureColour SC-T3400/3405Epson 05 years CoverPlus+ Onsite service including Print Heads for SureColour SC-T3400/3405Available — request a quoteEpson 1E years extension to CoverPlus+ Onsite service including Print Heads for SureColour SC-T3400/3405Epson 1E years extension to CoverPlus+ Onsite service including Print Heads for SureColour SC-T3400/3405Available — request a quote
Request a supplies quote

Questions

Straight answers

What AEC work fits the Epson SC-T3405N?

It fits 24-inch CAD drawings, PDF plan sheets, GIS maps, color coordination drawings, redlines, and short-run presentation output. Its listed HP-GL/2 and HP-RTL support is relevant to technical drawing workflows.

Can it print both roll paper and cut sheets?

Yes. The product data lists both roll paper and cut sheets, with a maximum roll width of 24 inches.

Is it suitable for a shared network printer?

It supports Ethernet LAN, Wi-Fi, USB, and Apple AirPrint. Listed security and network support includes SSL/TLS, SNMP, IPSec, IPv6, and Ethernet rates up to 1000 Mbit/s.

Will it handle fine technical lines?

The specifications list 2400 x 1200 DPI resolution, a minimum line width of 0.000787 inches (0.0200 mm), and line accuracy of +/- 0.1. Test your own dense CAD and PDF files before standardizing a drawing issue workflow.

When should we consider a different Epson model?

Consider the Epson T3770DR 24-in when media flexibility is a larger issue, or the Epson SureColor T3270 36-in when 36-inch output is required. The SC-T3405N is the more natural fit for routine 24-inch office printing.
