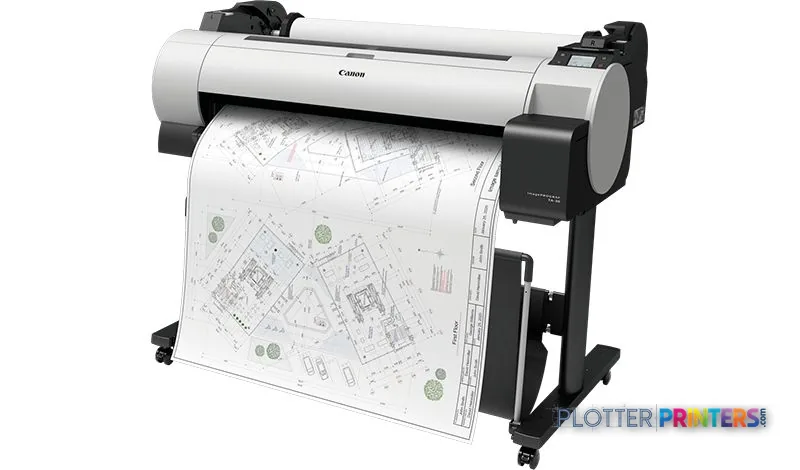

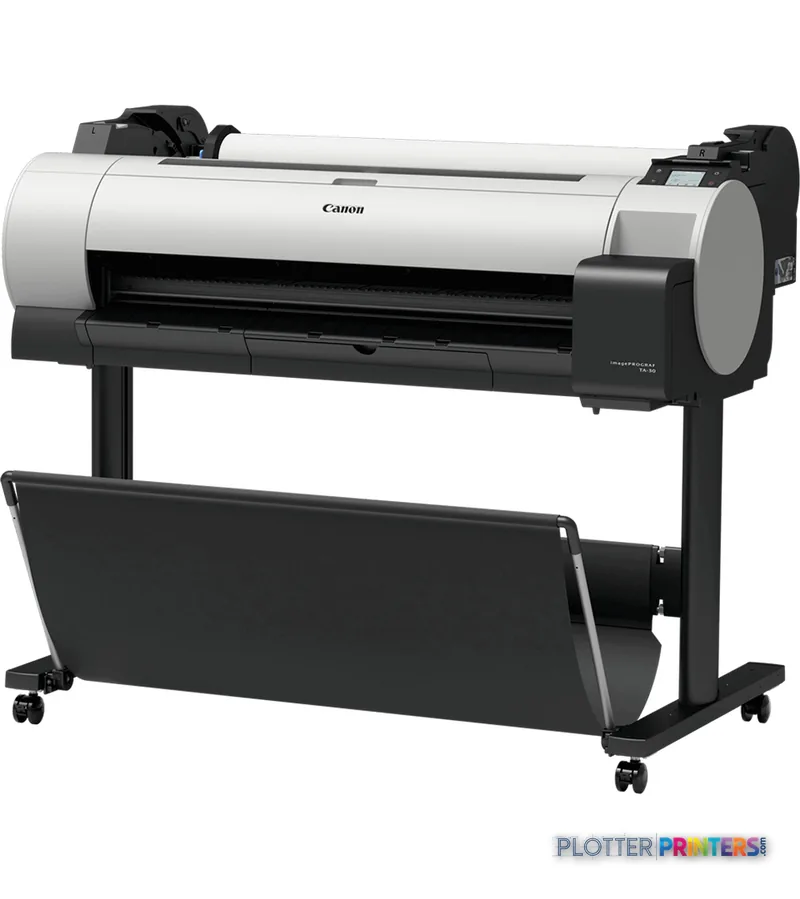

Canon imagePROGRAF TA-30

The TA-30’s strength is straightforward wide-format output rather than multifunction document handling. It accepts roll paper and cut sheets, offers borderless printing up to 36 inches, and connects through Gigabit Ethernet, Wi-Fi, or USB Type-A. That makes it practical for teams issuing permit sheets, civil exhibits, utility maps, field-markup sets, and presentation-oriented drawings from a shared network location. A 3-inch touchscreen provides the local control surface, while the compact-enough office footprint—50.7 inches wide by 34.3 inches deep—will matter in a studio or jobsite support room where every aisle has a purpose.

Color is available through Black, Cyan, Magenta, Matte black, and Yellow inks. For AEC use, that matters most when color carries information: phased work, discipline overlays, GIS layers, safety routes, or markups. The visual payoff is often in the cyan edge of a utility alignment against a pale base map. This page has no desk-measured ICC gamut data, so it would be careless to make broad claims about color range or matching; evaluate a sample of your own files on the bond or coated media you intend to use.

This is not a scanner or copier: the supplied specifications list neither scanning nor copying. Firms that routinely convert legacy plans, copy marked-up drawings, or need walk-up scan-to-file workflows should treat that as a decisive limitation, not an accessory gap. It also has one input tray, so it is better aligned with focused roll-based work than with a heavily mixed-media queue requiring frequent unattended changes.

The machine supports a maximum roll length of 708.7 inches and a maximum roll diameter of 5.91 inches. Those figures describe supported media limits, not an assurance of uninterrupted production under every job mix. In a busy print room, roll loading, changing media widths, collecting sets, and resolving PDF exceptions can dominate the day more than the headline print mechanism. The specified 42 dB sound-pressure level while printing and 35 dB ready noise level make office placement plausible, but local acoustic conditions and the character of the work remain worth considering.

Within the listed family, the Canon TA-20 24-in is the logical step down when 24-inch output covers the firm’s drawing sizes and floor space is tight. The TA-30 earns its larger footprint when 36-inch plan width is part of the normal deliverable, rather than an occasional exception. Neither comparison should be reduced to width alone: confirm the sizes your consultants, permitting authorities, and field teams actually request before choosing.

For maintenance planning, the resolved supplies are the Canon PF-06 printhead and Canon MC-31 maintenance cartridge. The Canon RH2-35 Roll holder and Canon CT-08 are listed compatible items. IT should also validate the supported operating-system list against its managed endpoints, and test representative CAD-exported PDFs and HP-GL/2 files through the intended submission path. For a nearby same-width comparison, use the TA-30 and Epson SC-T5100 comparison.
